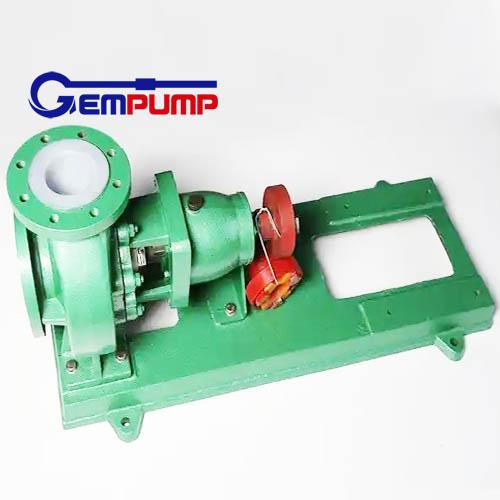

Fluorine-lined centrifugal pumps are specialized pumps designed to handle corrosive and aggressive fluids. The unique fluorine lining provides exceptional resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. This makes them ideal for industries such as chemical processing, pharmaceuticals, and petrochemicals.
Conform to design standard of ISO2858/GB/T5656
Flow range: 3~400m2/h
Lift range: ~80m
Design pressure: ~1.6MPa
Application temperature: -80~+150ºC
Application field: This series of pump is mainly used in industries of oil refinery, petrochemical industry,coal chemical industry, power plant, environmental protection engineering, polluted water treatment and cement plant,etc.
Suitable for transporting all kinds of clean, particle free or certain particle contained neutral or corrosive medium.
Meaning of model code:
160-Nominal diameter of impeller(mm)
50-Outlet diameter of pump(mm)
65-Inlet diameter of pump(mm)
IHF-Series code Overflow material The overcurrent part adopts DuPont PFD, F46, FEP, PVDF, Po and other materials according to the working conditions of the medium.
